Kubernetes Cluster

This page explains how to install the Semaphore Enterprise Edition control plane on Kubernetes cluster.

Overview​

If this is your first time using Semaphore, we suggest trying out Semaphore Cloud to see if the platform fits your needs. You can create a free trial account without a credit card and use every feature.

The self-hosted installation is recommended for users and teams that are already familiar with Semaphore.

Prerequisites​

  • A license
  • A domain
  • A Google Cloud or AWS account

Step 1 - Obtain a License​

The Enterprise Edition of Semaphore requires a license to operate. Depending on your company size, you may qualify for a free license.

To obtain a license and learn more, see the how to obtain a license page.

Step 2 - Define the domain​

We highly recommend installing Semaphore on a subdomain. Installing Semaphore on your base domain might interfere with other services running on the same domain.

If your base domain is example.com, you should define a subdomain such as ci.example.com for your Semaphore installation.

Step 3 - Prepare the environment​

This section creates Google Cloud Kubernetes Engine (GKE) and prepares it for Semaphore Enterprise Edition.

  1. Install the following tools:

  2. Log in to your Google Cloud

    Login to GCP
    gcloud auth login

  3. Create a Google Cloud Project for your Semaphore server. Take note of the Google Project ID

  4. Initialize a config file for your Semaphore and GCP project

    • DOMAIN: subdomain + domain for your installation
    • LICENSE_FILE: license file name
    • ROOT_EMAIL: email for the owner/administrator of the Semaphore server
    • ROOT_NAME: Name for the owner/administrator of the Semaphore server

    create semaphore-config file (example)
    echo export DOMAIN="your-subdomain-and-domain" > semaphore-config
    echo export LICENSE_FILE="license-file-name.txt" >> semaphore-config
    echo export ROOT_EMAIL="administrator-email" >> semaphore-config
    echo export ROOT_NAME=\"administrator-name\" >> semaphore-config
    echo export GOOGLE_CLOUD_PROJECT_ID="you-gcp-project-id" >> semaphore-config
    echo export GOOGLE_STATIC_IP_NAME="the-name-for-the-cluster-ingress-IP"  semaphore-config
    echo export GOOGLE_CERTIFICATE_NAME="a-name-for-the-tls-certificate" >> semaphore-config
    echo export GOOGLE_CLOUD_ZONE="the-zone-for-your-cluster" >> semaphore-config
    echo export GOOGLE_CLOUD_CLUSTER_NAME="your-cluster-name" >>  semaphore-config
    Show me an example config
    Create a config file for Google project
    echo export DOMAIN="ci.example.com" > semaphore-config
    echo export LICENSE_FILE="license-851b7f23-7408-4e75-8591-25b90d1c7dac.txt" >> semaphore-config
    echo export ROOT_EMAIL="admin@example.com" >> semaphore-config
    echo export ROOT_NAME=\"Semaphore Admin\" >> semaphore-config
    echo export GOOGLE_CLOUD_PROJECT_ID="my-semaphore-443021" >> semaphore-config
    echo export GOOGLE_CERTIFICATE_NAME="my-semaphore-certificates" >> semaphore-config
    echo export GOOGLE_STATIC_IP_NAME="my-semahore-ip" >> semaphore-config
    echo export GOOGLE_CLOUD_ZONE=us-central1-a >> semaphore-config
    echo export GOOGLE_CLOUD_CLUSTER_NAME="my-semaphore-gke" >> semaphore-config

  5. Switch to the Semaphore project on GCP

    Switch to your Semaphore project
    source semaphore-config
    gcloud config set project "${GOOGLE_CLOUD_PROJECT_ID}"

  6. Reserve a public IP address for the Kubernetes ingress

    Reserve IP
    gcloud compute addresses create "${GOOGLE_STATIC_IP_NAME}" \
        --project "${GOOGLE_CLOUD_PROJECT_ID}" \
        --global

  7. Retrieve the assigned IP

    Retrieve reserved IP
    export IP_ADDRESS=$(gcloud compute addresses describe "${GOOGLE_STATIC_IP_NAME}" \
        --project "${GOOGLE_CLOUD_PROJECT_ID}" \
        --global \
        --format='get(address)')
    echo export IP_ADDRESS=$IP_ADDRESS >> semaphore-config

  8. Go to your domain provider's DNS settings

  9. Create root domain A record

    • Type: A
    • Name: "your-subdomain" (e.g. ci.example.com)
    • Value: the IP address of the Kubernetes ingress

  10. Create a wildcard record

    • Type: A
    • Name: "*.your-subdomain" (e.g. *.ci.example.com)
    • Value: the IP address of the Kubernetes ingress

  11. Wait for DNS propagation (typically a few minutes)

    You can verify the creation of the A record in the Online Dig Tool for:

    • ci.example.com
    • *.ci.example.com

  12. Install certbot

    install certbot
    sudo apt-get update
    sudo apt-get -y install certbot

  13. Run certbot to create a TLS certificate

    create certificates with certbot
    source semaphore-config
    mkdir -p certs
    sudo certbot certonly --manual --preferred-challenges=dns \
        -d "*.${DOMAIN}" \
        --register-unsafely-without-email \
        --work-dir certs \
        --config-dir certs \
        --logs-dir certs

  14. You are prompted to create a DNS TXT record to verify ownership of the domain

    certbot challenge message
    Please deploy a DNS TXT record under the name:

    _acme-challenge.ci.example.com.

    with the following value:

    EL545Zty7vUUvIHQRSkwxXTWsirldw91enasgB5uOHs

  15. Go to your domain's console and create the DNS TXT record required by certbot. Wait for the record to be propagated

    tip

    You can verify the creation of the TXT record in the Google Dig Tool. Type the challenge DNS TXT record and check if its value corresponds to the correct value.

  16. Continue the certbot process. You should see a message like this

    certificate generated message
    Successfully received the certificate.
    Certificate is saved at: certs/live/ci.example.com/fullchain.pem
    Key is saved at:         certs/live/ci.example.com/privkey.pem
    This certificate expires on 2025-02-27.
    These files will be updated when the certificate renews.

  17. Check the existence of the certificate files on the following paths. You will require both files during the Semaphore installation.

    • Full chain certificate: ./certs/live/$DOMAIN/fullchain.pem
    • Private key certificate: ./certs/live/$DOMAIN/privkey.pem

  18. You may delete the DNS TXT record from your domain at this point. It's no longer needed.

  19. Correct the permissions of the certificate files

    Change ownership of certificates
    sudo chown -R $USER certs

  20. Install the TLS certificates

    Install certificates
    gcloud compute ssl-certificates create "${GOOGLE_CERTIFICATE_NAME}" \
    --certificate="certs/live/${DOMAIN}/fullchain.pem" \
    --private-key="certs/live/${DOMAIN}/privkey.pem" \
    --project="${GOOGLE_CLOUD_PROJECT_ID}"

Step 3 - Create the cluster​

  1. install the GKE plugin for the Google Cloud SDK

    Install plugins
    gcloud components install gke-gcloud-auth-plugin

  2. Enable the Kubernetes API for your project

    Enable Kubernetes API
    gcloud services enable container.googleapis.com --project ${GOOGLE_CLOUD_PROJECT_ID}

  3. Create the cluster. You may adjust the commands if you want to create more nodes or use more powerful machines. The command might take several minutes to complete

    Create GKE instance
    gcloud container clusters create "${GOOGLE_CLOUD_CLUSTER_NAME}" \
        --project "${GOOGLE_CLOUD_PROJECT_ID}" \
        --zone "${GOOGLE_CLOUD_ZONE}" \
        --num-nodes 1 \
        --machine-type e2-custom-8-16384 \
        --network "default" \
        --subnetwork "default" \
        --enable-ip-alias \
        --cluster-version latest \
        --no-enable-master-authorized-networks

  4. Once done, ensure you can access the cluster

    Test cluster accesss
    kubectl get nodes

  5. Install Emissary Ingress Controller

    Install CRDs
    kubectl apply -f https://app.getambassador.io/yaml/emissary/3.9.1/emissary-crds.yaml
    kubectl wait --timeout=90s --for=condition=available deployment emissary-apiext -n emissary-system

Step 4 - Install Semaphore​

note

This Helm command installs the Enterprise Edition. If you want to install the Enterprise Edition, refer see the Community Installation page.

  1. Sanity check that the environment is ready for the installation. The commands should not fail and return valid values

    Sanity check
    source semaphore-config
    echo "DOMAIN=${DOMAIN}"
    echo "IP_ADDRESS=${IP_ADDRESS}"
    echo "GOOGLE_CERTIFICATE_NAME=${GOOGLE_CERTIFICATE_NAME}"
    echo "GOOGLE_STATIC_IP_NAME=${GOOGLE_STATIC_IP_NAME}"
    ls certs/live/${DOMAIN}/privkey.pem certs/live/${DOMAIN}/fullchain.pem

  2. Optionally, install k9s to manage and observe your K3s system

    Install k9s
    wget https://github.com/derailed/k9s/releases/latest/download/k9s_linux_amd64.deb && sudo apt install ./k9s_linux_amd64.deb && rm k9s_linux_amd64.deb

  3. Install Semaphore with Helm. The process can take between 10 to 30 minutes

    Install Semaphore
    helm upgrade --install semaphore "oci://ghcr.io/semaphoreio/semaphore" \
      --debug \
      --version v1.5.0 \
      --timeout 40m \
      --set global.edition=ee \
      --set global.license="$(cat ${LICENSE_FILE})"\
      --set global.domain.ip="${IP_ADDRESS}" \
      --set global.domain.name="${DOMAIN}" \
      --set global.rootUser.email="${ROOT_EMAIL}" \
      --set global.rootUser.name="${ROOT_NAME}" \
      --set ingress.staticIpName="${GOOGLE_STATIC_IP_NAME}" \
      --set ingress.enabled=true \
      --set ingress.ssl.enabled=true \
      --set ingress.ssl.certName="${GOOGLE_CERTIFICATE_NAME}" \
      --set ingress.ssl.type="google"

Step 5 - First Login​

  1. Once Semaphore is installed, you should see this message

    =============================================================================================
    Congratulations, Semaphore has been installed successfully!

    To start using the app, go to: https://id.ci.tomfern.com/login

    You can fetch credentials for the login running this command:

    echo "Email: $(kubectl get secret semaphore-authentication -n default -o jsonpath='{.data.ROOT_USER_EMAIL}' | base64 -d)"; echo "Password: $(kubectl get secret semaphore-authentication -n default -o jsonpath='{.data.ROOT_USER_PASSWORD}' | base64 -d)"; echo "API Token: $(kubectl get secret semaphore-authentication -n default -o jsonpath='{.data.ROOT_USER_TOKEN}' | base64 -d)"
    =============================================================================================
    =============================================================================================

  2. Execute the shown command to retrieve the login credentials

    get login credentials
    echo "Email: $(kubectl get secret semaphore-authentication -n default -o jsonpath='{.data.ROOT_USER_EMAIL}' | base64 -d)"; echo "Password: $(kubectl get secret semaphore-authentication -n default -o jsonpath='{.data.ROOT_USER_PASSWORD}' | base64 -d)"; echo "API Token: $(kubectl get secret semaphore-authentication -n default -o jsonpath='{.data.ROOT_USER_TOKEN}' | base64 -d)"

    Email: root@example.com
    Password: AhGg_2v6uHuy7hqvNmeLw0O4RqI=
    API Token: nQjnaPKQvW6TqXtpTNSx

  3. Backup your semaphore-config in a safe place. It is required to upgrade Semaphore and renew expired certificates

  4. On your browser, open the subdomain where Semaphore was installed prefixed with id, e.g., id.ci.example.com

  5. Fill in the username and password. You might be prompted to set a new password

    Log in screen for Semaphore

  6. Open the server menu and select Settings

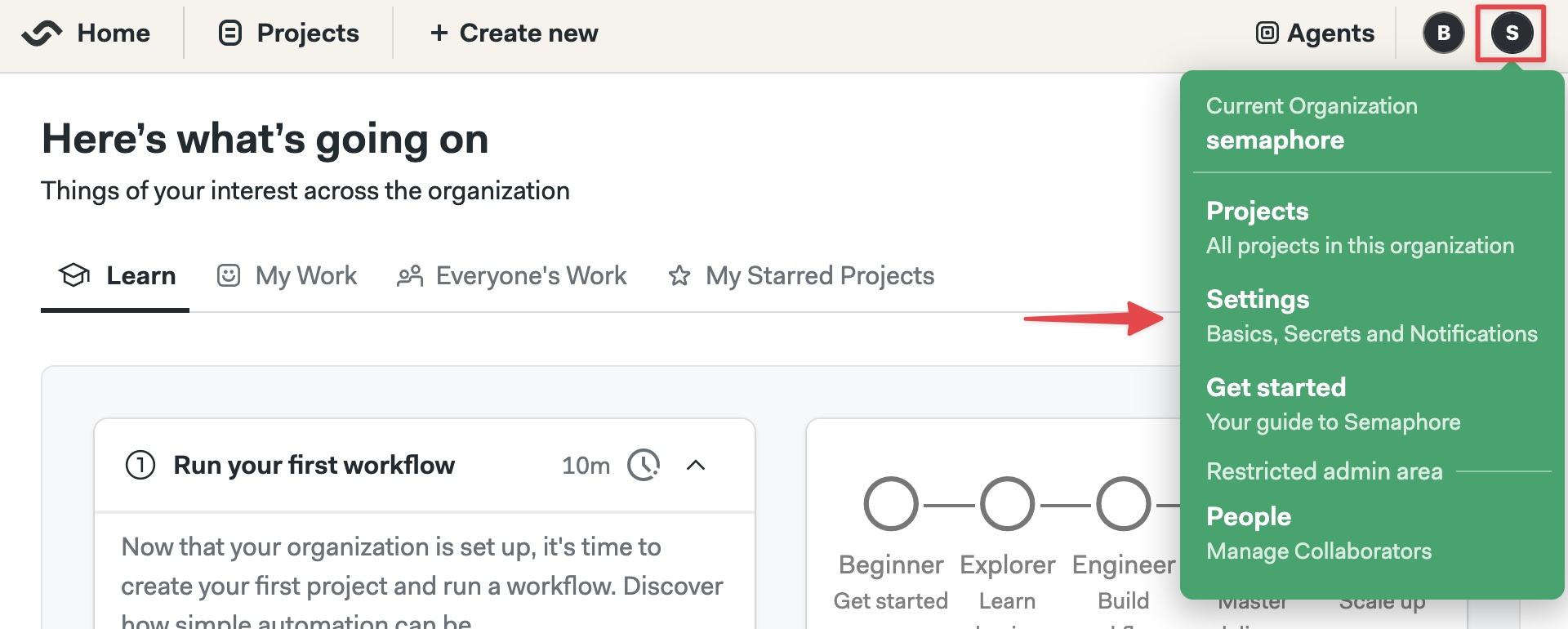

    Server settings menu

  7. Select Initialization jobs

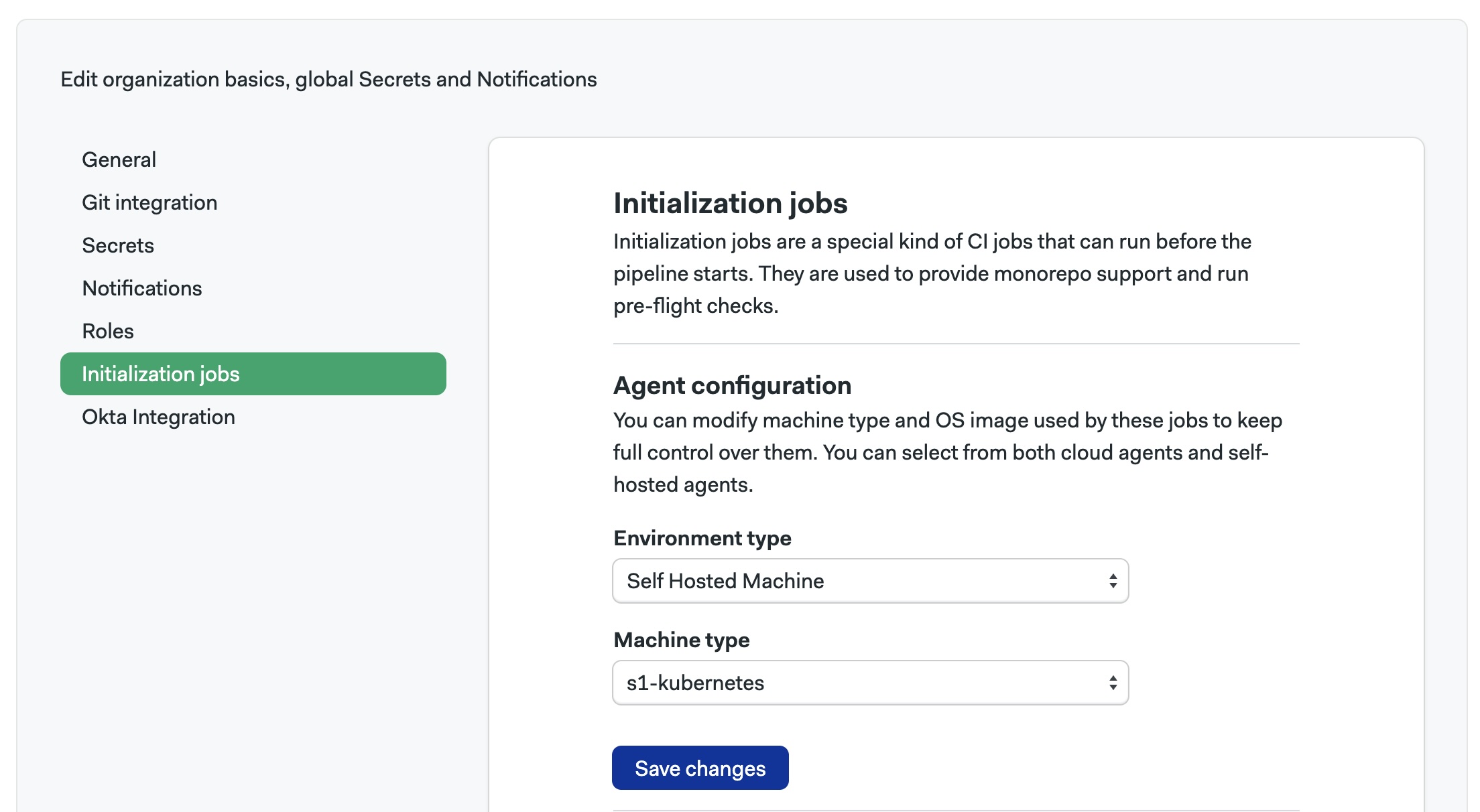

    Init job configuration

  8. Select the Environment Type to Self-hosted Machine

  9. Select Machine Type to s1-kubernetes and press Save changes

    note

    You should press Save changes even if the options were already selected.

  10. Return to the Semaphore initial page. On the Learn tab, you'll find the onboarding guide. Follow it to complete the setup and build your first project

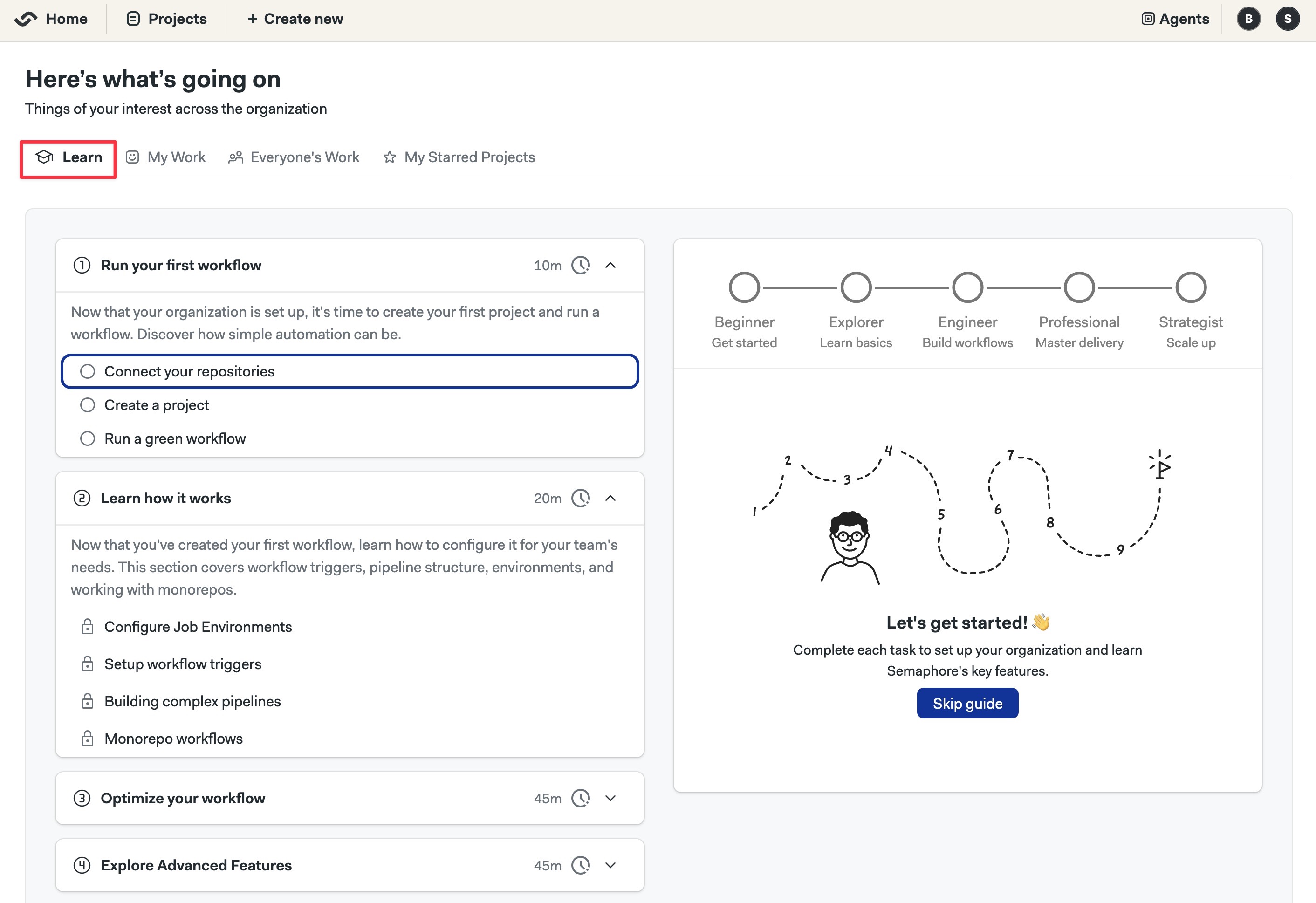

    Onboarding guide screen
